Database Lab tutorial for any PostgreSQL database

Database Lab is used to boost software development and testing processes via enabling ultra-fast provisioning of databases of any size.

In this tutorial, we are going to create a "demo" PostgreSQL database and then set up a Database Lab Engine for it. Database Lab Engine will be installed on an AWS EC2 instance (alternatively, it can be an instance on another cloud platform such as GCP, or a bare-metal machine) with Ubuntu 18.04 or 20.04, and add an EBS volume to store PostgreSQL data directory. Optionally, you'll be able to skip creating the "demo" database and use an existing database instead.


  1. Prepare a virtual machine (we will use AWS EC2) with an additional disk to store data, install Docker to run containers, and ZFS to enable copy-on-write for thin cloning
  2. Configure and launch the Database Lab Engine
  3. Start using Database Lab API and client CLI to clone Postgres database in seconds

Not using AWS? Not a problem: if you want to use any other cloud provider (like Google Cloud) or run your Database Lab on VMWare, or on bare metal; only the first step is going to be slightly different. In general, the overall procedure is the same.


LVM support as an alternative to ZFS first appeared in version 0.3.0 of Database Lab. Note that LVM, unlike a ZFS, does not support multiple snapshots and related features.

Step 1. Prepare a machine with disk, Docker, and ZFS

Prepare a machine

Create an EC2 instance with Ubuntu 18.04 or 20.04, and add an EBS volume to store data. You can find detailed instructions on how to create an AWS EC2 instance here (if you want to use Google Cloud, see the GCP documentation).

(optional) Ports need to be open in the Security Group being used

You will need to open the following ports (inbound rules in your Security Group):

  • 22: to connect to the instance using SSH
  • 2345: to work with Database Lab Engine API (can be changed in the Database Lab Engine configuration file)
  • 6000-6100: to connect to PostgreSQL clones (this is the default port range used in the Database Lab Engine configuration file, and can be changed if needed)

For real-life use, it is not a good idea to open ports to the public. Instead, it is recommended to use VPN or SSH port forwarding to access both Database Lab API and PostgreSQL clones, or to enforce encryption for all connections using NGINX with SSL and configuring SSL in PostgreSQL configuration.

Additionally, to be able to install software, allow access to external resources using HTTP/HTTPS (edit the outbound rules in your Security Group):

  • 80 for HTTP
  • 443 for HTTPS

Here is how the inbound and outbound rules in your Security Group may look:

EC2 security group inbound

EC2 security group outbound

Install Docker

If needed, you can find the detailed installation guides for Docker here.

Install dependencies:

sudo apt-get update && sudo apt-get install -y \
apt-transport-https \
ca-certificates \
curl \
gnupg-agent \

Install Docker:

curl -fsSL | sudo apt-key add -

sudo add-apt-repository -y \
"deb [arch=amd64] \
$(lsb_release -cs) \

sudo apt-get update && sudo apt-get install -y \
docker-ce \
docker-ce-cli \


Further, we will need environment variable $DBLAB_DISK. It must contain the device name that corresponds to the disk where all the Database Lab Engine data will be stored.

To understand what needs to be specified in $DBLAB_DISK in your case, check the output of lsblk:

sudo lsblk

Some examples:

  • AWS local ephemeral NVMe disks; EBS volumes for instances built on the Nitro system:

    $ sudo lsblk
    nvme0n1 259:0 0 8G 0 disk
    └─nvme0n1p1 259:1 0 8G 0 part /
    nvme1n1 259:2 0 777G 0 disk

    $ export DBLAB_DISK="/dev/nvme1n1"
  • AWS EBS volumes for older (pre-Nitro) EC2 instances:

    $ sudo lsblk
    xvda 202:0 0 8G 0 disk
    └─xvda1 202:1 0 8G 0 part /
    xvdb 202:16 0 777G 0 disk

    $ export DBLAB_DISK="/dev/xvdb"

Set up either ZFS or LVM to enable thin cloning

ZFS is a recommended way to enable thin cloning in Database Lab. LVM is also available, but has certain limitations:

  • much less flexible disk space consumption and risks for a clone to be destroyed during massive operations in it
  • inability to work with multiple snapshots ("time travel"), cloning always happens based on the most recent version of data

Install ZFS:

sudo apt-get install -y zfsutils-linux

Create a new ZFS storage pool (make sure $DBLAB_DISK has the correct value, see the previous step!):

sudo zpool create -f \
-O compression=on \
-O atime=off \
-O recordsize=128k \
-O logbias=throughput \
-m /var/lib/dblab/dblab_pool \
dblab_pool \

If you're going to keep the state of DLE up-to-date with the source (physicalRestore.sync.enabled: true in the DLE config), then consider lower values for recordsize. Using recordsize=128k might give you a better compression ratio and performance of massive IO-bound operations like the creation of an index, but worse performance of WAL replay, so the lag can be higher. And vice versa, with recordsize=8k, the performance of WAL replay will be better, but the trade-off is a lower compression ratio and longer duration of index creation.

And check the result using zfs list and lsblk, it has to be like this:

$ sudo zfs list
dblab_pool 106K 777G 24K /var/lib/dblab/dblab_pool

$ sudo lsblk
nvme0n1 259:0 0 8G 0 disk
└─nvme0n1p1 259:1 0 8G 0 part /
nvme1n1 259:0 0 777G 0 disk
├─nvme1n1p1 259:3 0 777G 0 part
└─nvme1n1p9 259:4 0 8M 0 part

Step 2. Configure and launch the Database Lab Engine


To make your work with Database Lab API secure, do not open Database Lab API and Postgres clone ports to the public and instead use VPN or SSH port forwarding. It is also a good idea to encrypt all the traffic: for Postgres clones, set up SSL in the configuration files; and for Database Lab API, install, and configure NGINX with a self-signed SSL certificate. See the How to Secure Database Lab Engine.

Prepare database data directory

Next, we need to get the data to the Database Lab Engine server. For our testing needs, we have 3 options:

  1. "Generated database": generate a synthetic database for testing purposes
  2. "Physical copy" (pg_basebackup): copy an existing database (perform "think cloning" once) using a "physical" method such as pg_basebackup
  3. "Logical copy" (dump/restore): copy an existing database using the "logical" method (dump/restore)

If you don't have an existing database for testing, then let's just generate some synthetic database in the data directory ("PGDATA") located at /var/lib/dblab/dblab_pool/data. A simple way of doing this is to use PostgreSQL standard benchmarking tool, pgbench. With scale factor -s 100, the database size will be ~1.4 GiB; feel free to adjust the scale factor value according to your needs.

To generate PGDATA with pgbench, we are going to run a regular Docker container with Postgres temporarily. We will use POSTGRES_HOST_AUTH_METHOD=trust to allow a connection without authentication (not suitable for real-life use).

sudo docker run \
--name dblab_pg_initdb \
--label dblab_sync \
--env PGDATA=/var/lib/postgresql/pgdata \
--volume /var/lib/dblab/dblab_pool/data:/var/lib/postgresql/pgdata \
--detach \

Create the test database:

sudo docker exec -it dblab_pg_initdb psql -U postgres -c 'create database test'

Generate data in the test database using pgbench:

# 10,000,000 accounts, ~1.4 GiB of data.
sudo docker exec -it dblab_pg_initdb pgbench -U postgres -i -s 100 test

PostgreSQL data directory is ready. Now let's stop and remove the container:

sudo docker stop dblab_pg_initdb
sudo docker rm dblab_pg_initdb

Now, we need to take care of Database Lab Engine configuration. Copy the contents of configuration example config.example.logical_generic.yml from the Database Lab repository to ~/.dblab/engine/configs/server.yml:

mkdir -p ~/.dblab/engine/configs

curl -fsSL \
--output ~/.dblab/engine/configs/server.yml

Open ~/.dblab/engine/configs/server.yml and edit the following options:

  • Set secure server:verificationToken, it will be used to authorize API requests to the Database Lab Engine
  • Remove logicalDump section completely
  • Remove logicalRestore section completely
  • Leave logicalSnapshot as is
  • If your Postgres major version is not 14 (default), set the proper version in Postgres Docker image tag:
    • databaseContainer:dockerImage

Launch Database Lab server

sudo docker run \
--name dblab_server \
--label dblab_control \
--privileged \
--publish \
--volume /var/run/docker.sock:/var/run/docker.sock \
--volume /var/lib/dblab:/var/lib/dblab/:rshared \
--volume ~/.dblab/engine/configs:/home/dblab/configs \
--volume ~/.dblab/engine/meta:/home/dblab/meta \
--volume ~/.dblab/engine/logs:/home/dblab/logs \
--volume /sys/kernel/debug:/sys/kernel/debug:rw \
--volume /lib/modules:/lib/modules:ro \
--volume /proc:/host_proc:ro \
--detach \
--restart on-failure \

Parameter --publish means that only local connections will be allowed.

To allow external connections, consider either using additional software such as NGINX or Envoy or changing this parameter. Removing the host/IP part (--publish 2345:2345) allows listening to all available network interfaces. See more details in the official Docker command-line reference.

How to check the Database Lab Engine logs

sudo docker logs dblab_server -f

Need to start over? Here is how to clean up

If something went south and you need to make another attempt at the steps in this tutorial, use the following steps to clean up:

# Stop and remove all Docker containers
sudo docker ps -aq | xargs --no-run-if-empty sudo docker rm -f

# Remove all Docker images
sudo docker images -q | xargs --no-run-if-empty sudo docker rmi

# Clean up the data directory
sudo rm -rf /var/lib/dblab/dblab_pool/data/*

# Remove dump directory
sudo umount /var/lib/dblab/dblab_pool/dump
sudo rm -rf /var/lib/dblab/dblab_pool/dump

# To start from the very beginning: destroy ZFS storage pool
sudo zpool destroy dblab_pool

Step 3. Start cloning!


Install Database Lab client CLI

CLI can be used on any machine, you just need to be able to reach the Database Lab Engine API (port 2345 by default). In this tutorial, we will install and use CLI locally on the EC2 instance.

curl -fsSL | bash
sudo mv ~/.dblab/dblab /usr/local/bin/dblab

Initialize CLI configuration:

dblab init \
--environment-id=tutorial \
--url=http://localhost:2345 \
--token=secret_token \

Check the configuration by fetching the status of the instance:

dblab instance status

Create a clone

dblab clone create \
--username dblab_user_1 \
--password secret_password \
--id my_first_clone

After a second or two, if everything is configured correctly, you will see that the clone is ready to be used. It should look like this:

"id": "botcmi54uvgmo17htcl0",
"snapshot": {
"id": "[email protected]",
"createdAt": "2020-02-04T23:20:04Z",
"dataStateAt": "2020-02-04T23:20:04Z"
"protected": false,
"deleteAt": "",
"createdAt": "2020-02-05T14:03:52Z",
"status": {
"code": "OK",
"message": "Clone is ready to accept Postgres connections."
"db": {
"connStr": "host= port=6000 user=dblab_user_1",
"host": "",
"port": "6000",
"username": "dblab_user_1",
"password": ""
"metadata": {
"cloneDiffSize": 479232,
"cloningTime": 2.892935211,
"maxIdleMinutes": 0
"project": ""

Connect to a clone

Install psql:

sudo apt-get install postgresql-client

Now you can work with this clone using any PostgreSQL client, for example, psql. Use the following connection info (db section of the response of the dblab clone create command):

PGPASSWORD=secret_password psql \
"host=localhost port=6000 user=dblab_user_1 dbname=test"

Check the available table:


Now let's see how quickly we can reset the state of the clone. Delete some data or drop some table.

To reset, use the clone reset command (replace my_first_clone with the ID of your clone if you changed it). You can do it not leaving psql -- for that, use the \! command:

\! dblab clone reset my_first_clone

Check the status of the clone:

\! dblab clone status my_first_clone

Notice how fast the resetting was, just a few seconds! 💥

Reconnect to the clone:


Now check the database objects you've dropped or partially deleted – everything should be the same as when we started.

For more, see the full client CLI reference.

GUI (Database Lab Platform)

To use the GUI, you need to sign up for Database Lab Platform.

Add Database Lab Engine to the Platform

  1. On the Database Lab instances page of your organization click the Add instance button. Database Lab Engine / Database Lab instances
  2. On the Add instance page fill in the following:
    • Project: choose any project name, it will be created automatically
    • Verification token: specify the same verification token that you've used in the Database Lab Engine configuration file
    • URL: Database Lab API server (EC2 instance public IP or hostname, specify port if needed, e.g. or

Database Lab Engine / Add instance

  1. Click the Verify URL button to check the availability of the Engine. Ignore the warning about insecure connection – in this Tutorial, we have skipped some security-related steps.
  2. Click the Add button to add the instance to the Platform.

Create a clone

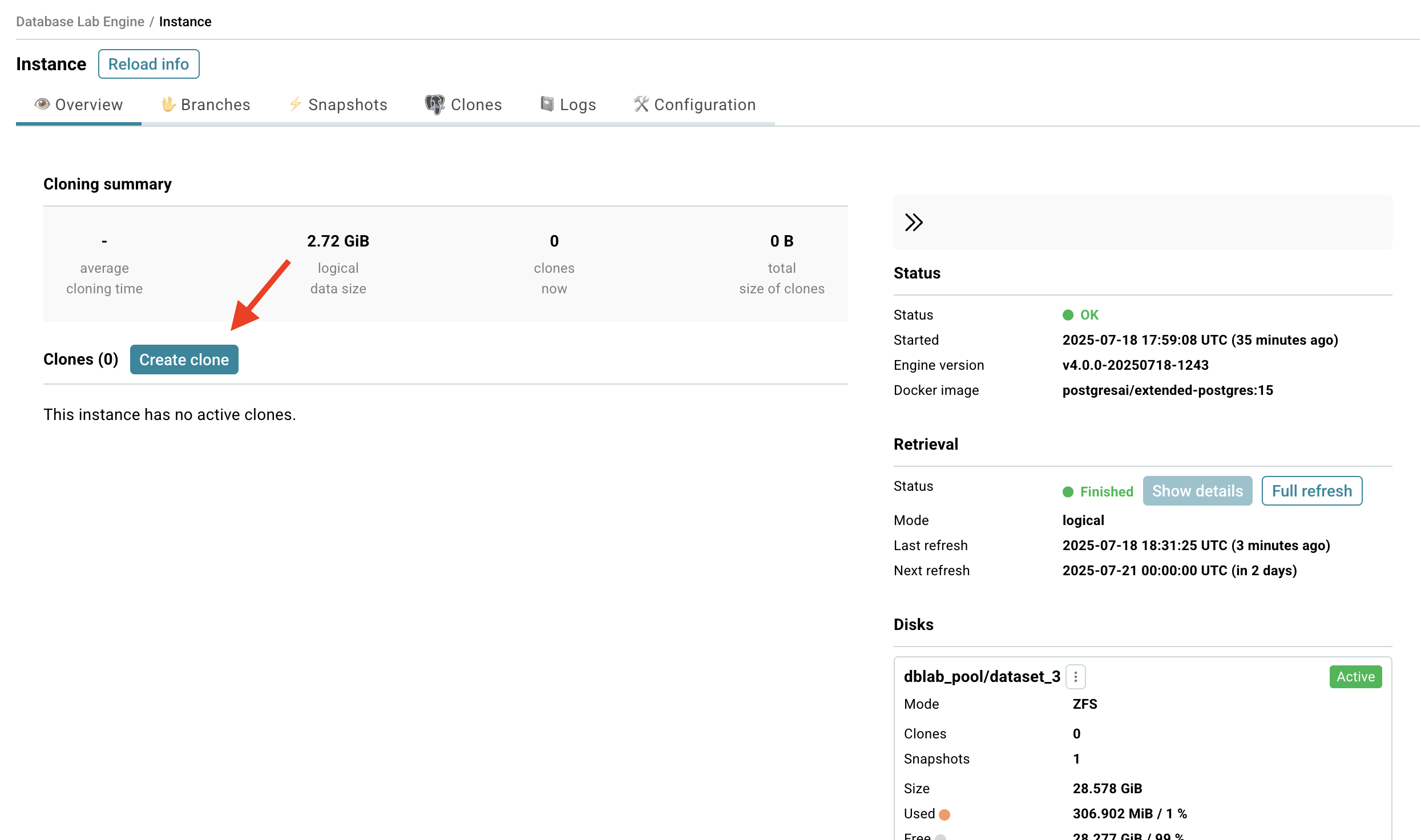

  1. Go to the Database Lab instance page.

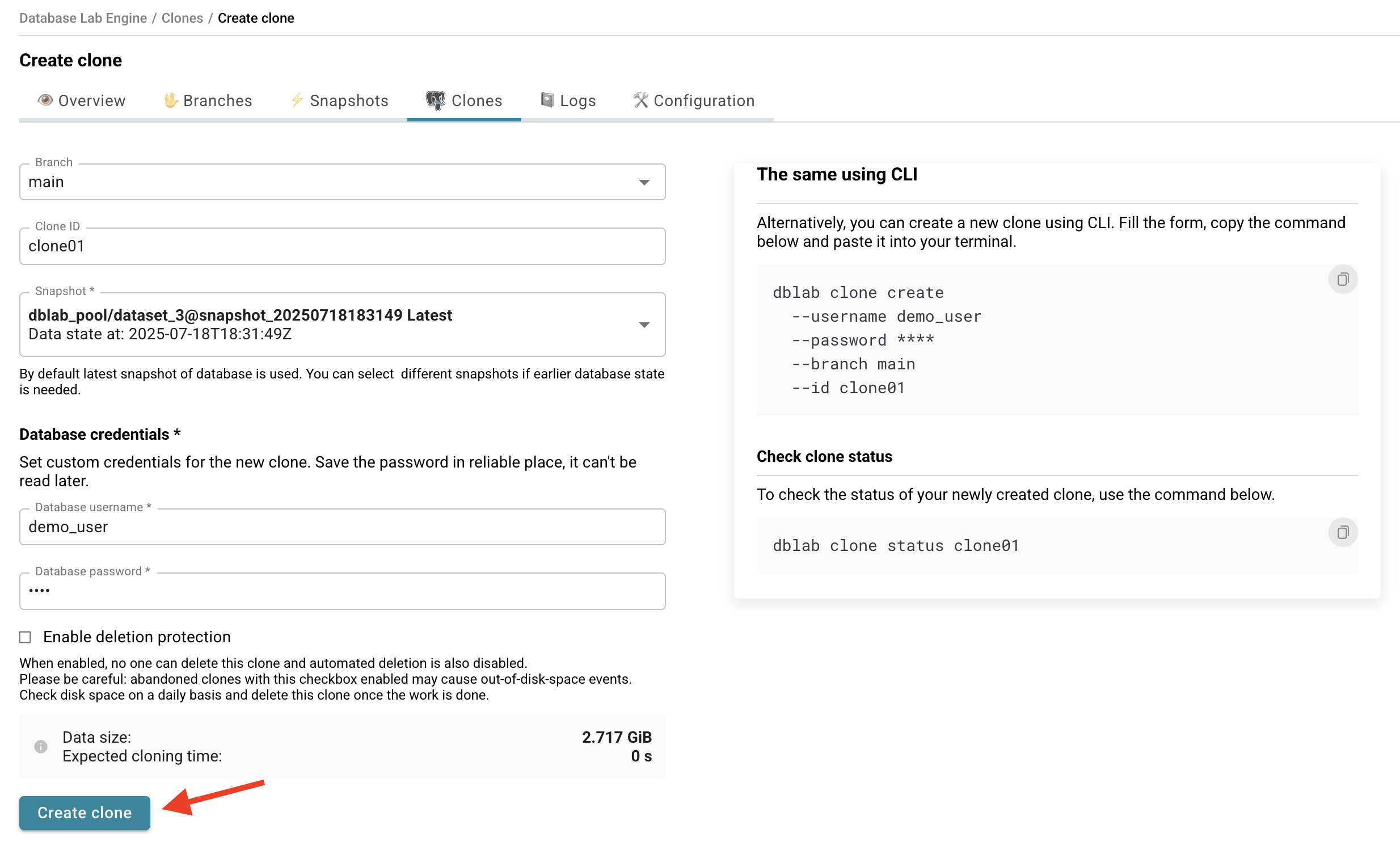

  2. Click the Create clone button. Database Lab engine page / Create clone
  3. Fill the ID field with a meaningful name.
  4. (optional) By default, the latest data snapshot (closest to production state) will be used to provision a clone. You can choose another snapshot if any.
  5. Fill database credentials. Remember the password (it will not be available later, Database Lab Platform does not store it!) – you will need to use it to connect to the clone.
  6. Click the Create clone button and wait for a clone to be provisioned. The process should take only a few seconds. Database Lab engine clone creation page

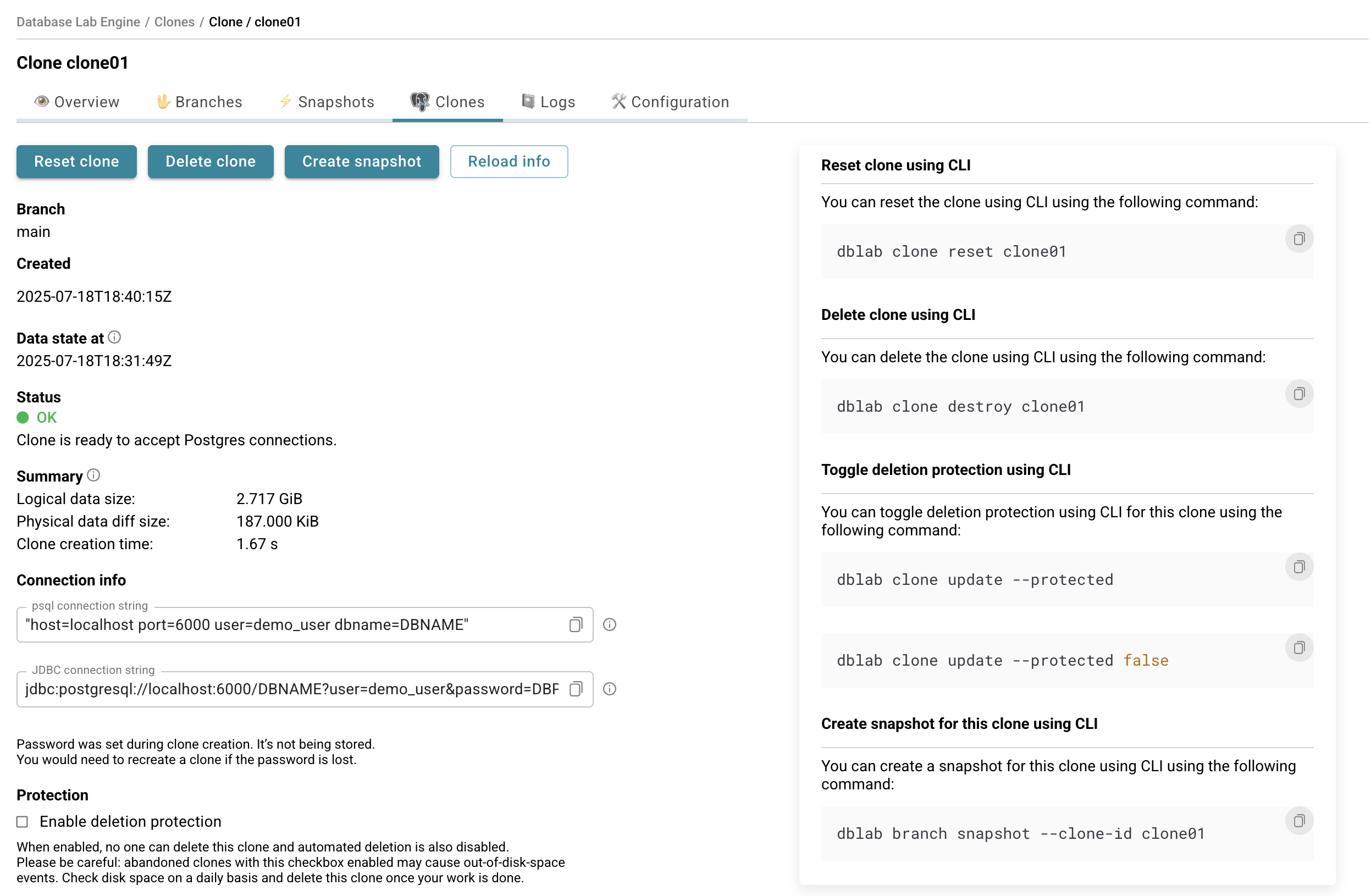

  7. You will be redirected to the Database Lab clone page. Database Lab engine clone page

Connect to a clone

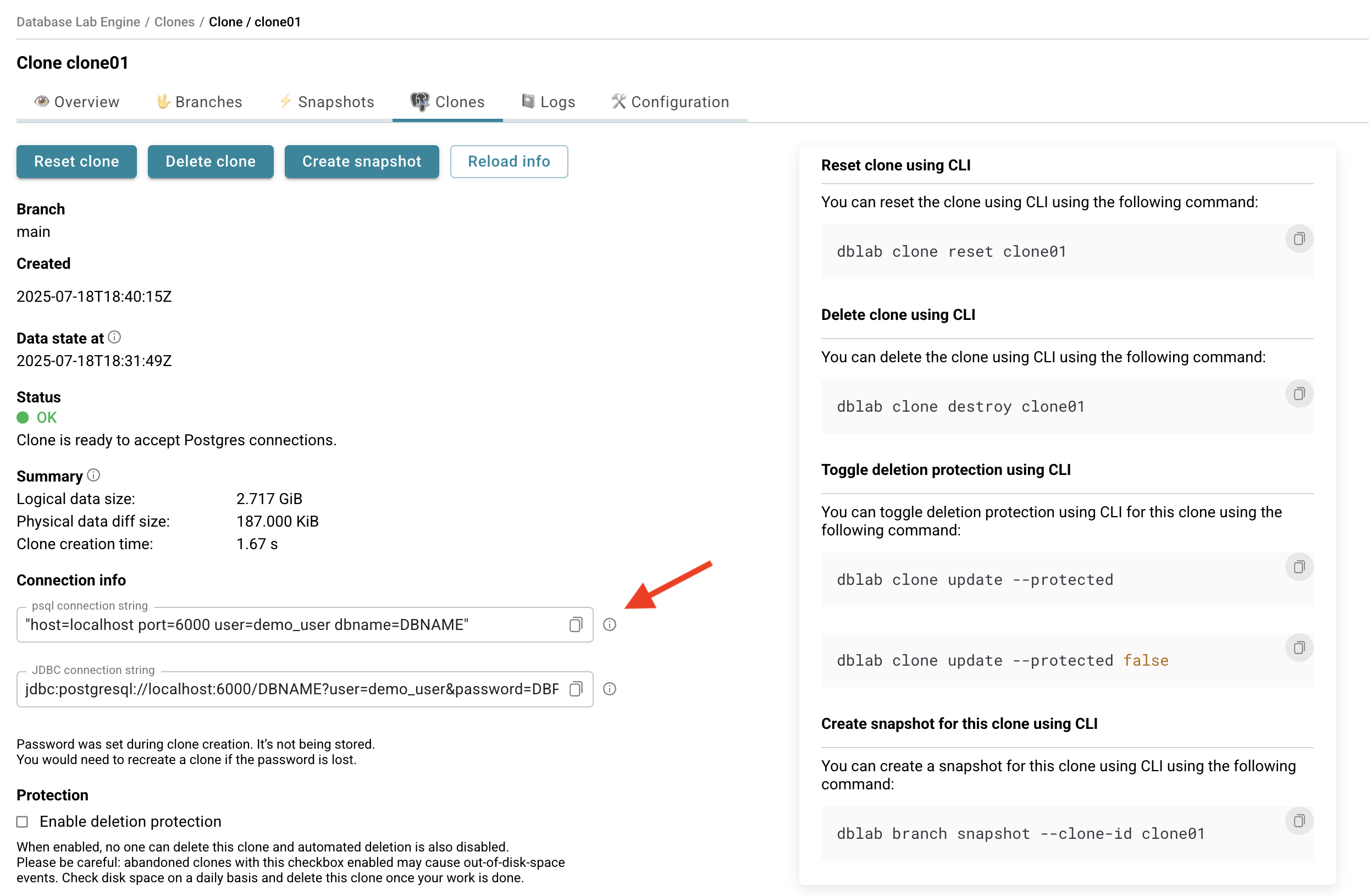

  1. From the Database Lab clone page under section Connection info, copy the psql connection string field contents by clicking the Copy button. Database Lab clone page / psql connection string
  2. Here we assume that you have psql installed on your working machine. In the terminal, type psql and paste the psql connection string field contents. Change the database name DBNAME parameter, you can always use postgres for the initial connection.
  3. Run the command and type the password you've set during the clone creation.
  4. Test established connection by listing tables in the database using \d. Terminal / psql
Have questions?

Reach out to our team, we'll be happy to help! Use the Intercom widget located at the right bottom corner.
